Lenses for diode laser collimators, CD and DVD players, laser pointers, laser levels, laser surface inspection systems and positioning and measuring equipment. Standard and custom laser lens assemblies.

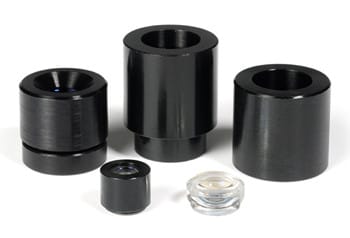

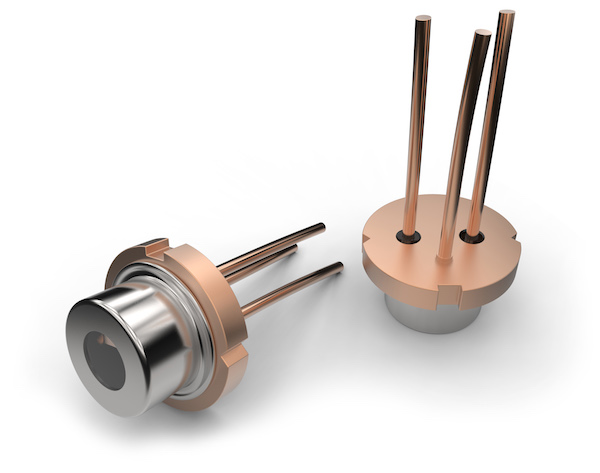

Universe Laser Lens assemblies and elements are available in standard combinations of focal lengths, wavelength, and barrel styles. We offer both glass and plastic aspheric designs to fill most typical application requirements. Our collimating lenses for diode lasers are ideal for a wide variety of instrumentation and gaging applications. Cylinder and rod lenses are available for beam sharpening, astigmatism correction, and line generation with diode lasers.
Universe’s comprehensive value-added and custom design capabilities will accommodate any non-standard design or manufacturing criteria.
Laser systems rely on precise optical control from the moment the beam leaves the source. Whether used in barcode readers, industrial scanners, or machine vision systems, the right lens helps shape, focus, and stabilize the beam for accurate performance. Since the early growth of semiconductor laser technology in the 1980s, Universe Optics has developed laser collimating lenses, barcode reader optics, and custom optical components for demanding applications.
Initially, Universe Optics made the LP-01, a compact 4.5 mm, three-element collimating lens that shaped laser diode output into a narrow beam capable of projecting a visible red dot 10 to 20 meters away. As applications evolved, Universe expanded its lineup into specialized collimating and projection lenses for commercial, industrial, and scientific applications.
Key examples of laser optics and (current) applications include:
- LP-02: 8mm laser collimating lens. Used in air and water particle testing.
- LC-50S / LC-50C: 50mm laser collimating lens. Used in coal mines for safety verification equipment.
- Other focal lengths from 2.56mm to 50mm are available.
From early semiconductor laser pointers to barcode reader optics and long-range projection lenses, Universe Optics has built a strong history in laser lens engineering. This experience continues to support its work in precision optical design, custom lens manufacturing, and application-specific solutions for industries where beam control, accuracy, and reliability matter.
Applications Include: Diode-laser collimators, CD players, barcode scanners, laser pointers, laser levels, positioning and measuring equipment, laser surface inspection systems.
View Products: Diode Laser Lens Assemblies
Click on a Part Number to view product details and an outline drawing.
| Part Number | Focal Length | Numerical Aperture | Lens Application | Working Distance | Dimensions (diameter x length) | Wavelength |
|---|---|---|---|---|---|---|
| LP-05 | 3.3mm | 0.45 | Laser Collimating | 1.85mm | 7.4mm x 3.05mm | 780nm |
| LP-07 | 3.4mm | 0.47 | Laser Collimating | 1.43mm | 5.0mm x 2.14mm | 780nm |
| LP-06 | 3.9mm | 0.45 | Laser Collimating | 2.12mm | 7.4mm x 3.4mm | 780nm |
| LP-01G | 4.5mm | 0.47 | Laser Collimating | 2.92mm | 6.4mm x 5.35mm | 800nm |
| LP-04 | 4.5mm | 0.45 | Laser Collimating | 1.90mm | 7.4mm x 3.55mm | 780nm |
| LP-08B | 6.26mm | 0.4 | Laser Collimating | 3.82mm | 8.0mm x 7.5mm | 780nm |
| LP-02 | 8.0mm | 0.38 | Laser Collimating | 3.35mm | 11.9mm x 11.1mm | 780nm |
| LC-01 | 12.0mm | 0.1 | Laser Collimating | 6.06mm | 13.0mm x 12.0mm | 780nm |
| LC-02RH | 15.0mm | 0.1 | Laser Collimating | 6.19mm | 13.0mm x 16.0mm | 780nm |
| LC-50S | 50.0mm | 0.22 | Laser Collimating | 37.3mm | 32.0mm x 20.0mm | 780nm |
