Laser diode collimators are optical devices used to turn the naturally divergent output of a laser diode into a focused, collimated beam. Compact yet highly effective, they are essential in applications ranging from medical and imaging systems to industrial alignment and process control. With designs that balance precision, versatility, and efficiency, laser diode collimators play a vital role in ensuring reliable performance across modern photonics and instrumentation.

How a Laser Diode Collimator Works

Laser diodes naturally emit light in a highly divergent pattern, spreading rapidly in both the fast and slow axes. A collimator’s role is to convert this diverging light into a parallel beam by carefully positioning a lens at the correct distance from the diode. The working principle combines precise mechanical adjustment with optical design to achieve the desired beam shape and quality.

Adjustment Principle

  • The collimation process relies on tuning the distance between the laser diode and the collimating lens.
  • By moving the lens holder closer or farther from the diode, the emitted beam can be adjusted until it becomes parallel (collimated).
  • Proper alignment ensures maximum efficiency and beam quality.

Beam Collimation Equations

The dimensions of the collimated beam depend on the divergence angles of the diode and the focal length of the lens.

Perpendicular (⊥) direction

BD⊥=2×f×sin )

Parallel (∥) direction

BD⊥=2×f×sin )

Where:

  • f = focal length of the collimating lens
  • θ⊥​, θ∥ = far-field divergence angles of the diode

These formulas allow designers to predict beam size after collimation.

Importance of Lens Numerical Aperture (NA) and Focal Length

Numerical Aperture (NA)

  • The NA of the lens should be larger than that of the diode (ideally at least 2× higher).
  • A higher NA ensures the lens captures more of the diode’s divergent light, reducing beam loss.

Focal Length (f)

  • Shorter focal lengths produce smaller, tighter beams.
  • Longer focal lengths generate larger beams with lower divergence, suitable for some optical setups.

Aspheric Lenses

  • Often preferred to minimize spherical aberrations.
  • It ensures the collimated beam remains uniform and distortion-free.

Optical Design Considerations

Designing an effective laser diode collimator requires understanding the unique optical properties of diode emission and choosing the right lens type and specifications.

Divergence Properties of Laser Diodes (Fast vs. Slow Axis)

Laser diodes emit light asymmetrically in two directions:

  • Fast axis: Very high divergence, often 25–40° (full width at half maximum).
  • Slow axis: Lower divergence, typically 8–12°.

Why Aspheric Lenses Are Commonly Used

Standard spherical lenses introduce spherical aberrations, distorting the collimated beam. Aspheric lenses minimize these aberrations, resulting in:

  • Sharper beam profiles.
  • Higher efficiency with less scattering.
  • Compact designs that reduce the need for multi-lens systems.
  • Widely used in single-emitter and VCSEL collimation setups.

Role of Numerical Aperture (NA) in Minimizing Aberrations

  • The Numerical Aperture (NA) of a lens defines how much light it can capture from the divergent diode output.

To minimize optical loss and distortion:

  • The lens NA should be at least 2× higher than the diode’s NA.
  • This ensures efficient light capture across both axes.
  • Proper NA selection also reduces beam clipping, improving overall beam quality.

Achromatic Optics: Why They’re Usually Unnecessary

  • Achromatic lenses are designed to correct chromatic aberration across broad wavelength ranges.
  • Laser diodes, however, typically emit light at a narrow spectral bandwidth (often <5 nm).
  • Since the wavelength spread is minimal, chromatic dispersion effects are negligible.
  • As a result, simpler aspheric or spherical designs are sufficient in most diode collimators.

Types of Laser Diode Collimators

Laser diodes vary widely in their emission characteristics, such as divergence angles, beam symmetry, and output power. Because of these differences, no single collimation approach works for all diodes. Instead, engineers use specialized collimator designs tailored to each diode type.

Single-Emitter Diode Collimators

Single-emitter diodes are compact light sources but have asymmetric divergence properties, making beam shaping more complex.

Beam divergence is significantly different in the two axes:

  • Slow axis: ~10° (full width at half maximum).
  • Fast axis: ~30° (full width at half maximum).
  • Output beam is elliptical without correction.
  • Emit light from a small active region.

Collimation Approach

  • Aspheric lenses are typically used to minimize spherical aberrations and capture as much light as possible.
  • Cylindrical or anamorphic optics may be added to equalize the fast and slow axes.
  • These collimators are common in precision alignment systems, sensors, and low-to-medium power instrumentation.

VCSEL and VCSEL Array Collimators

Vertical-Cavity Surface-Emitting Lasers (VCSELs) differ from edge-emitters, offering a simpler collimation process.

Beam Properties

  • Produce circular beams instead of elliptical ones.
  • Exhibit moderate divergence, often much lower than edge-emitters.
  • Arrays of VCSELs can create multiple uniform beamlets.

Collimation Approach

  • A spherical lens with moderate numerical aperture is usually sufficient.
  • For compact designs or smaller beam sizes, micro lenses are used.
  • Arrays can be collimated with lenslet arrays or custom optics to maintain uniformity.

Applications

  • Imaging and sensing (e.g., 3D face recognition in smartphones).
  • Short-distance data communications.
  • Consumer and industrial laser systems requiring compact, uniform beams.

Broad-Area Emitters, Diode Bars, and Stacks

Broad-area laser diodes and diode bars are designed for high-power output, but their optical properties create new challenges.

Emission Region & Beam Quality

  • Larger emission area along the wafer surface (horizontal direction).
  • Slow axis: lower divergence than the fast axis but highly multimode, reducing beam quality.
  • Fast axis: extremely high divergence, requiring immediate correction.

Collimation Approach

  • FAC (Fast Axis Collimation) lenses are often attached directly to the diode facet to tame divergence instantly.
  • Cylindrical or slightly acylindrical lenses are used to shape beams from diode bars and arrays.
  • Micro-lens arrays can collimate multiple emitters within a stacked configuration.
  • Advanced designs may require multiple optical stages for acceptable beam uniformity.

Challenges

  • Residual divergence in the slow axis remains difficult to eliminate.
  • “Smile” distortion (curvature of emitter positions in bars) can complicate beam shaping.

High-Power Diode Collimators

High-power diodes demand robust optical designs to manage both thermal load and extreme divergence.

Key Characteristics

  • Designed for industrial and medical use, where high optical power is required.
  • Output beams are highly asymmetric and require staged correction.

Collimation Approach

  • Fast axis collimation is performed first with FAC lenses mounted very close to the diode.
  • Slow axis collimation is performed later, typically with a cylindrical lens or aspheric element.
  • Some systems combine multiple corrected beams into fiber-coupled outputs for high-power delivery.

Applications

  • Material processing (cutting, welding, engraving).
  • Medical treatments requiring high-energy light.
  • Pumping solid-state or fiber lasers.

Applications of Laser Diode Collimators

Laser diode collimators are essential in modern optics because they transform divergent diode emissions into controlled, parallel beams. This capability makes them indispensable across multiple industries where precision, efficiency, and reliability are required.

Optical Alignment Systems

  • Used to generate precise, stable beams for aligning optical components, machinery, or sensors.
  • Collimated beams ensure accurate positioning in systems where even small misalignments could reduce performance.
  • Common in laboratories, telecommunications setups, and laser-based assembly lines.

Process Control

  • Deployed in manufacturing environments to monitor and regulate automated processes.
  • Collimated beams enable accurate detection of part dimensions, surface profiles, or motion paths.
  • Examples include semiconductor fabrication, printing inspection, and automated quality control systems.

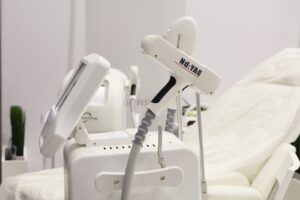

Medical Applications

Laser diode collimators are widely applied in medical devices where controlled light delivery is critical. Uses include:

  • Laser surgery and therapies: where precise targeting reduces damage to surrounding tissue.
  • Ophthalmology: for vision correction and retinal imaging.
  • Diagnostics: where collimated beams enhance accuracy in imaging systems.

Imaging and Inspection Systems

  • Collimators provide uniform illumination required for high-resolution imaging.
  • In machine vision, collimated beams reduce distortions, allowing accurate detection of surface flaws or structural features.
  • Common in electronics inspection, material defect detection, and microscopy.

Test and Measurement Setups

Collimated beams form the basis for accurate optical testing. Applications include:

  • Measuring lens performance and optical system alignment.
  • Calibrating instruments that require stable reference beams.
  • Precision metrology in both industrial and research environments.

Advanced Lens Assemblies for Laser Diodes

Beyond simple collimation, many applications demand more complex lens assemblies that can shape, correct, or adapt laser diode beams for specific functions. These advanced optical solutions combine standard and custom designs, specialized materials, and engineered geometries to achieve high precision and flexibility in laser-based systems.

Standard and Custom Designs (Glass vs. Plastic Aspheric Lenses)

Glass Aspheric Lenses

  • Offer high durability, excellent optical clarity, and resistance to thermal expansion.
  • Ideal for high-power laser diodes or systems exposed to harsh environments.
  • Provide minimal spherical aberration, maintaining sharp beam profiles.

Plastic Aspheric Lenses

  • Lightweight and cost-effective alternatives.
  • Suitable for compact, portable devices like consumer electronics.
  • Can be produced in large volumes at lower costs, though with reduced thermal resistance compared to glass.

Custom Assemblies

  • Tailored to meet non-standard requirements such as unique focal lengths, wavelength ranges, or packaging constraints.
  • Enable integration into specialized optical instruments and OEM products.

Specialty Optics: Cylinder and Rod Lenses

Laser diodes often produce beams with asymmetry or astigmatism. Specialty optics are used to refine these beams for application-specific needs.

Cylindrical Lenses

  • Collimate or reshape light in one axis.
  • Useful for correcting the fast or slow axis independently.
  • Often applied in diode bar or stacked emitter systems.

Rod Lenses

  • Small cylindrical lenses (sometimes called “fiber lenses”).
  • Provide beam shaping and focusing, especially in fiber-coupled diode modules.
  • Can sharpen beams, correct astigmatism, or generate uniform lines.

Line Generation Optics

  • Transform point-like diode beams into lines for scanning, inspection, and positioning systems.
  • Common in barcode scanners, machine vision, and measurement tools.

Machine Vision and Instrumentation Uses

Machine Vision

  • Collimators provide uniform illumination critical for defect detection and pattern recognition.
  • Used in electronics inspection, 3D imaging, and robotic guidance systems.

Instrumentation

  • Enable accurate light delivery in spectroscopic tools, medical diagnostic devices, and measurement setups.
  • Collimated beams reduce scattering and improve precision in sensitive optical experiments.

Laser diode collimators play a critical role in transforming the naturally divergent output of laser diodes into precise, usable beams for scientific, medical, and industrial applications. From simple single-emitter setups to complex high-power diode stacks, the right collimator design ensures optimal beam quality, efficiency, and performance. With advancements in aspheric lenses, specialty optics, and compact assemblies, collimators continue to expand the possibilities of photonics across a wide range of fields.

For precision-engineered collimators and custom lens assemblies, contact Universe Optics for expert design, performance data, and immediate delivery.
